Description
EXTRAMUL®S is a highly effective 100% active secondary emulsifier for oil-based drilling fluids (invert emulsions).
It was developed for the purposes of providing and maintaining high electrical stability values and minimal HTHP fluid loss. It prevents water phase from appearing in the mud filtrate.
EXTRAMUL®S is mandatory to use in heavy muds, as it provides hydrophobic properties to the weighting agent and drilled solids, prevents solids from aggregation and agglomeration.
It stabilizes mud rheological properties at high bottomhole temperatures.
Application
· used as a supplementary OBM emulsifier in adverse downhole environments
· provides high electrical stability values
· provides HTHP fluid loss control
Advantages
· can be used with any type of base oil: diesel, crude, mineral oil
· promotes oil wetting in invert emulsions, can be used instead or in conjunction with the wetting agent WELLTREAT®
Recommended treatment
Recommended concentration – 2.5-5.0 ppb (7.0-14.0 kg/m3) depending on the mud weight, OWR and downhole temperature
It is recommended to add primary emulsifier EXTRAMUL®2000 first into the mud pit with the base oil, then - EXTRAMUL®S in the same pit, then – lime to activate the emulsifiers, then – mix with the brine (water phase).
It is recommended to use all available hydraulic and mechanical tools to mix the emulsion as much as possible.
Typical properties
Appearance – Amber to brown viscous liquid
Handling
Please refer to the MSDS for specific instructions
Packaging

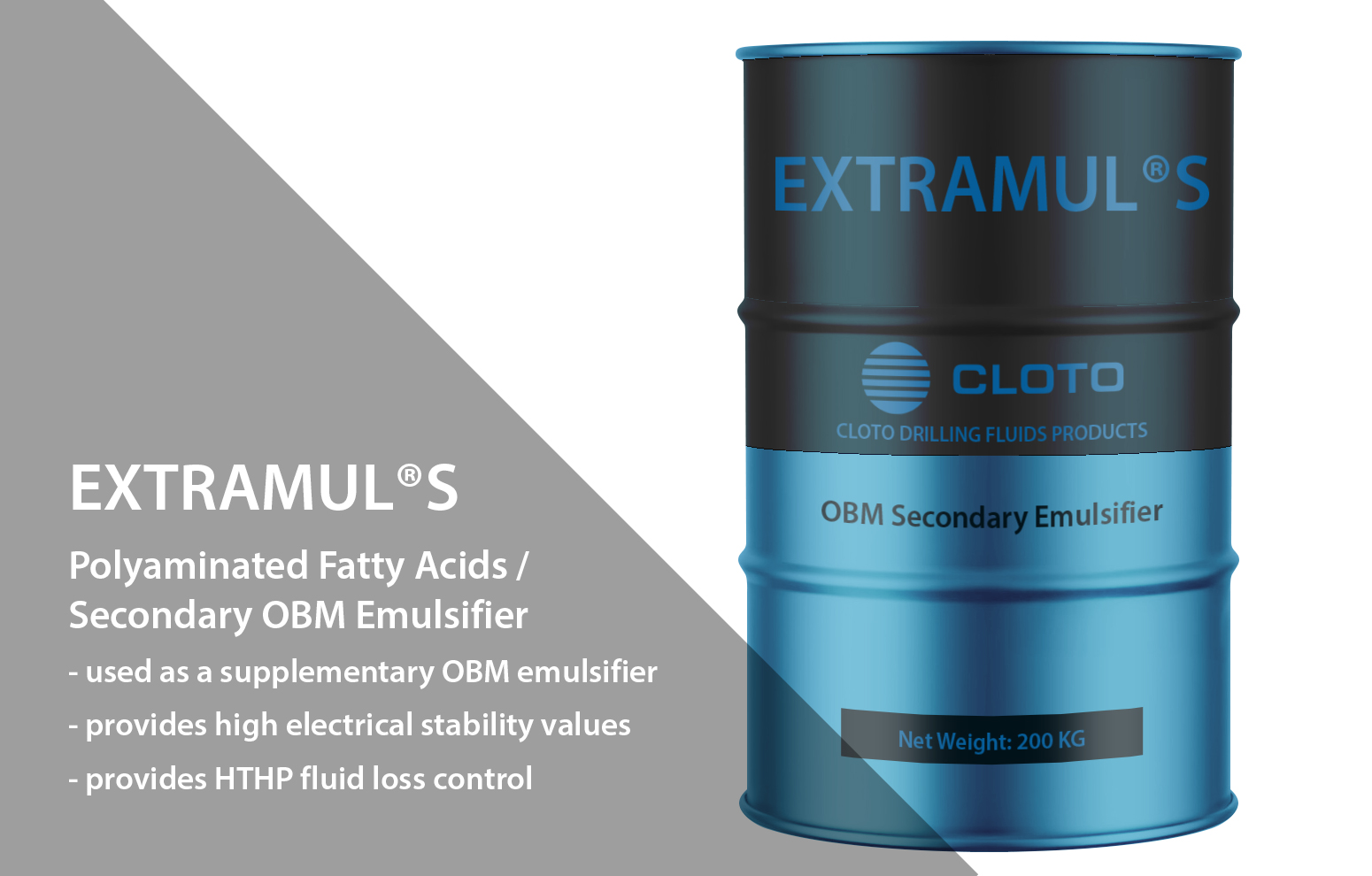

EXTRAMUL®S emulsifier is packaged in 55 gal plastic or metal drums
